BS-Backward TYPE

While the water pass through the grid bar, all solids are collected and carried away by special cleaning combs on the upper part of the filter.

  • All typed making by SUS-304, corrosion resistant.
  • Channel Installation can be done quickly and easier.
  • Cleaning combs are making of proof-acid, wear-resistant. Easy to collect and carry away by special cleaning combs.
  • Easy operation, high safety, low cost, simple maintenance.
  • Stable treatment capacity with fully auto operation.
  • Wide range application suitably used for various kind of waste water, for example: civil discharges, industries, farms, paper–mills, tanneries, fish industries and so on.
  • No public hazards, saving energy
  • Screen opening 3-20 mm, moreover we can customize the size according to the customer’s request.
Inquiry





The BS series' operation toward in rake type, rake designed as newly unique patent.
The serrated rake and brushes can alternately remove solids more efficient.
Materials of serrated rake and brushes are all plastic which have high resistance to corrosion when working in water and extend the using life.

Channel Width Under 100cm

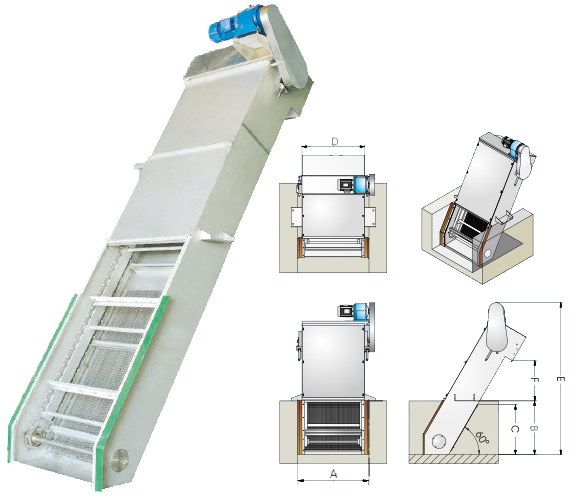

Model

Channel mm

Dimensions  mm

Capacity m3/hr

Width

 Depth

Water Level

Screen Width

Screen Height

Falling Distance

Screen Opening  mm

A

B

C

D

E

F

3

6

10

15

20

BS-50-5

500

500

450

400

1600

450

132

165

207

228

250

BS-50-6

600

550

1700

162

202

252

279

306

BS-50-7

700

650

1800

191

239

298

330

362

BS-50-8

800

750

1900

220

275

344

381

417

BS-50-9

900

850

2000

250

312

390

431

473

BS-50-10

1000

950

2100

279

349

436

482

529

BS-60-6

600

600

550

500

1700

450

209

261

327

361

396

BS-60-7

700

650

1800

247

309

386

427

468

BS-60-8

800

750

1900

285

356

446

493

540

BS-60-9

900

850

2000

323

404

505

558

612

BS-60-10

1000

950

2100

361

451

564

624

684

BS-60-11

1100

1050

2200

399

499

624

690

756

BS-70-6

700

600

550

600

1700

450

257

321

401

443

486

BS-70-7

700

650

1800

303

379

474

524

574

BS-70-8

800

750

1900

350

437

547

605

663

BS-70-9

900

850

2000

397

496

620

685

751

BS-70-10

1000

950

2100

443

554

693

766

839

BS-70-11

1100

1050

2200

490

612

765

846

928

BS-80-7

800

700

650

700

1700

450

359

449

562

621

681

BS-80-8

800

750

1800

415

518

648

717

785

BS-80-9

900

850

1900

470

588

734

812

890

BS-80-10

1000

950

2000

525

657

821

908

995

BS-80-11

1100

1050

2100

581

726

907

1003

1100

BS-80-12

1200

1150

2200

636

795

994

1099

1204

※ Customize according to dimensions

Channel Width Over 100cm

Model

Channel mm

Dimensions  mm

Capacity m3/hr

Width

 Depth

Water Level

Screen Width

Screen Height

Falling Distance

Screen Opening  mm

A

B

C

D

E

F

3

6

10

15

20

BS-100-8

1000

800

750

900

2150

500

567

756

872

983

1085

BS-100-9

900

850

2250

643

857

989

1114

1229

BS-100-10

1000

950

2350

718

958

1105

1245

1374

BS-100-11

1100

1050

2450

794

1058

1221

1376

1519

BS-100-12

1200

1150

2550

869

1159

1338

1507

1663

BS-100-13

1300

1250

2650

945

1260

1454

1638

1808

BS-100-14

1400

1350

2750

1021

1361

1570

1769

1952

BS-100-15

1500

1450

2850

1096

1462

1686

1900

2097

BS-120-10

1200

1000

950

1100

2350

500

889

1186

1368

1541

1701

BS-120-11

1100

1050

2450

983

1310

1512

1704

1880

BS-120-12

1200

1150

2550

1076

1435

1656

1866

2059

BS-120-13

1300

1250

2650

1170

1560

1800

2028

2238

BS-120-14

1400

1350

2750

1264

1685

1944

2190

2417

BS-120-15

1500

1450

2850

1357

1810

2088

2352

2596

BS-120-16

1600

1550

2950

1451

1934

2232

2515

2775

BS-120-17

1700

1650

3050

1544

2059

2376

2677

2955

BS-120-18

1800

1750

3150

1638

2184

2520

2839

3134

BS-120-19

1900

1850

3250

1732

2309

2664

3001

3313

BS-120-20

2000

1950

3350

1825

2434

2808

3164

3492

BS-150-10

1500

1000

950

1400

2350

500

1146

1528

1763

1986

2192

BS-150-11

1100

1050

2450

1266

1688

1948

2195

2422

BS-150-12

1200

1150

2550

1387

1849

2134

2404

2653

BS-150-13

1300

1250

2650

1508

2010

2319

2613

2884

BS-150-14

1400

1350

2750

1628

2171

2505

2822

3115

BS-150-15

1500

1450

2850

1749

2332

2690

3031

3345

BS-150-16

1600

1550

2950

1869

2492

2876

3240

3576

BS-150-17

1700

1650

3050

1990

2653

3061

3449

3807

BS-150-18

1800

1750

3150

2111

2814

3247

3658

4037

BS-150-19

1900

1850

3250

2231

2975

3432

3867

4268

BS-150-20

2000

1950

3350

2352

3136

3618

4076

4499

 ※ Customize according to dimensions
