Bar Screen – CS-Forward TYPE

While the water pass through the grid bar, all solids are collected and carried away by special cleaning combs on the upper part of the filter.

  • All typed making by SUS-304, corrosion resistant.
  • Channel Installation can be done quickly and easier.
  • Cleaning combs are making of proof-acid, wear-resistant. Easy to collect and carry away by special cleaning combs.
  • Easy operation, high safety, low cost, simple maintenance.
  • Stable treatment capacity with fully auto operation.
  • Wide range application suitably used for various kind of waste water, for example: civil discharges, industries, farms, paper–mills, tanneries, fish industries and so on.
  • No public hazards, saving energy
  • Screen opening 3-20 mm, moreover we can customize the size according to the customer’s request.
Inquiry

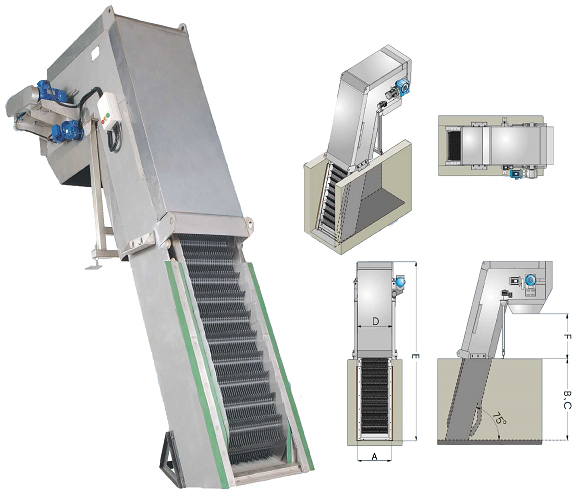

The CS series' operation toward the outside rake type,rake uses a special design that every rake strings into a circulate chain-belt screen, and the whole chain-belt screen works in circle.

The material of rake is reinforced plastics model materials ABS that can conducive to corrosion resistance of working in water and extend the service life.

Channel Width Under 100cm

Model

Channel mm

Dimensions mm

Capacity m3/hr

Width

Depth

Water Level

Screen width

Screen Height

Falling Distance

Screen Opening mm

A

B

C

D

E

F

3

6

CS-70-10

700

1000

1000

600

3080

1000

396

526

CS-70-11

1100

1100

3180

435

579

CS-70-12

1200

1200

3280

475

632

CS-70-13

1300

1300

3380

515

684

CS-70-14

1400

1400

3480

554

737

CS-70-15

1500

1500

3580

594

790

CS-70-16

1600

1600

3680

633 842

CS-70-17

1700

1700

3780

673 895

CS-70-18

1800

1800

3880

712 948

CS-70-19

1900

1900

3980

752 1000

CS-70-20

2000

2000

4080

792 1053

CS-80-10

800

1000

1000

700

3080

1000

495

659

CS-80-11

1100

1100

3180

544

725

CS-80-12

1200

1200

3280

594

791

CS-80-13

1300

1300

3380

643

857

CS-80-14 1400 1400 3480 693 923
CS-80-15 1500 1500 3580 742 989
CS-80-16 1600 1600 3680 792 1055
CS-80-17 1700 1700 3780 841 1120
CS-80-18 1800 1800

3880

891 1187
CS-80-19 1900 1900 3980 940 1252
CS-80-20 2000 2000 4080 990 1318

CS-90-10

900



1000

550

800



3080

1000



594

792

CS-90-11 1100 1100 3180 653 871
CS-90-12 1200 1200 3280 712 950
CS-90-13 1300 1300 3380 772 1029
CS-90-14 1400 1400 3480 831 1108
CS-90-15 1500 1500 3580 891 1188
CS-90-16 1600 1600 3680 950 1267
CS-90-17 1700 1700 3780 1010  1346
CS-90-18 1800 1800 3880 1069 1425
CS-90-19 1900 1900 3980 1128 1505
CS-90-20 2000 2000 4080 1188 1584

※ Customized according to dimensions

Channel Width Over 100cm

Model

Channel mm

Dimensions mm

Capacity m3/hr

Width

Depth

Water Level

Screen width

Screen Height

Falling Distance

Screen Opening mm

A

B

C

D

E

F

3

6

CS-100-10

1000

1000

1000

900

3080

1000

693

922

CS-100-11

1100

1100

3180

762

1015

CS-100-12

1200

1200

3280

831

1107

CS-100-13

1300

1300

3380

900

1199

CS-100-14

1400

1400

3480

970

1291

CS-100-15

1500

1500

3580

1039

1384

CS-100-16

1600

1600

3680

1108 1476

CS-100-17

1700

1700

3780

1178 1568

CS-100-18

1800

1800

3880

1247 1660

CS-100-19

1900

1900

3980

1316 1753

CS-100-20

2000

2000

4080

1386 1845

CS-120-10

1200

1000

1000

1100

3080

1000

891

1188

CS-120-11

1100

1100

3180

980

1306

CS-120-12

1200

1200

3280

1069

1425

CS-120-13

1300

1300

3380

1158

1544

CS-120-14 1400 1400 3480 1247 1663
CS-120-15 1500 1500 3580 1336 1782
CS-120-16 1600 1600 3680 1425 1900
CS-120-17 1700 1700 3780 1514 2019
CS-120-18 1800 1800

3880

1603 2138
CS-120-19 1900 1900 3980 1692 2257
CS-120-20 2000 2000 4080 1782 2376

※ Customized according to dimensions
